Product Parameter

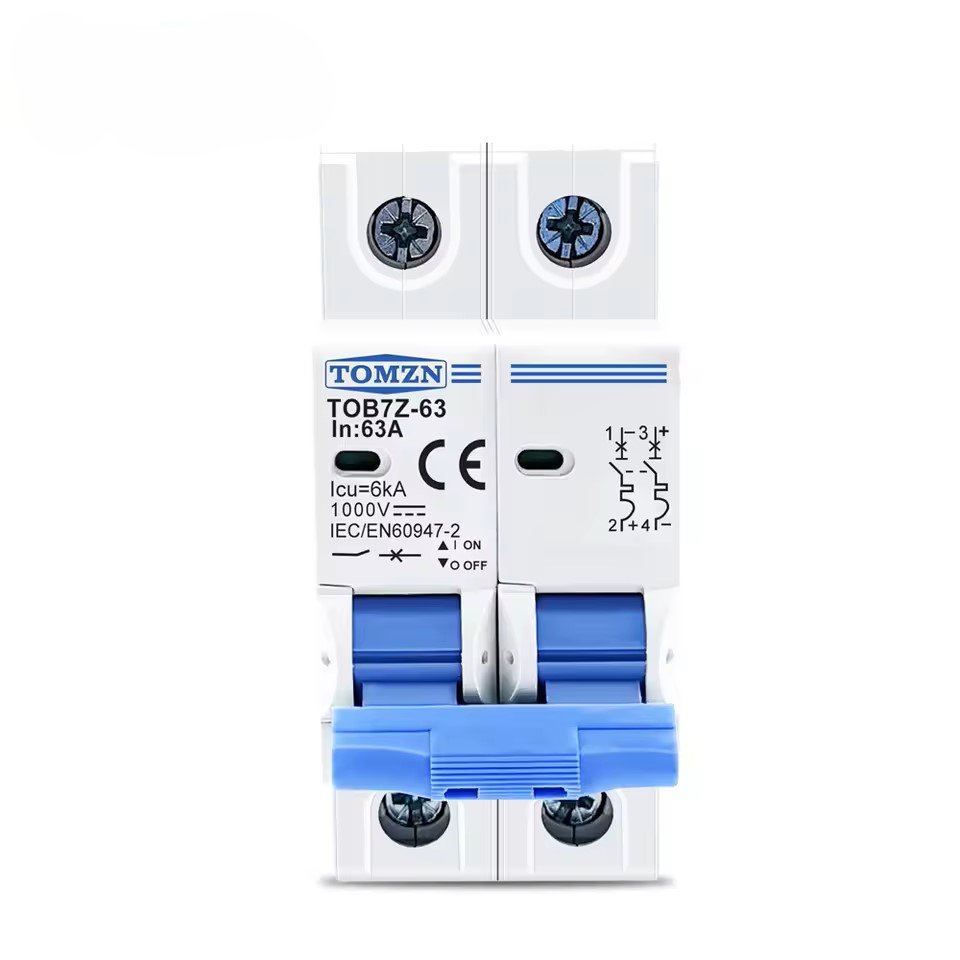

Product Name: DC Miniature Circuit Breaker

Product Material: ABS plastic , Metal , Copper

Poles：2pole

Uimp：4kV

Rated Operational Voltage：500V/1000V

Rated Current：10/16/20/25/32/40/50/63A

Standard：IEC60898-1

Breaking Capacity：4kA

Mounting Type：DIN Rail Mount

Package Content

2 Pole DC 500V Option

²1× 2 pole 500V DC Circuit Breaker

²1×35mm din rail

²2×din rail sleeve

²2×screw

2 Pole DC 1000V Option

²1× 2 pole 1000V DC Circuit Breaker

²1×35mm din rail

²2×din rail sleeve

²2×screw

Product Feature

1. The shell is crafted from premium flame-retardant material, ensuring durability and resistance to sparks. It is sturdy and capable of withstanding challenging conditions

2. It incorporates all-silver contacts known for their exceptional conductive efficiency, further ensuring optimal electrical performance in critical applications.

3. This solution offers comprehensive protection for distribution facilities by preventing damage from overload and short circuits. Additionally, it serves as a reliable control and isolation device.

4. DC arc extinguishing presents a greater challenge than AC arcs. To overcome this hurdle, the DC miniature circuit breaker incorporates an innovative magnetic system. This system significantly improves the efficiency of arc extinguishing, enhancing safety and reliability.

5. Widely adopted across diverse industries, this technology finds use in DC power systems, marine power systems, solar PV systems, and various other DC applications, demonstrating its adaptability.
